HOME > PRODUCTS > 5G router > G535 Wi-Fi 6 5G Router

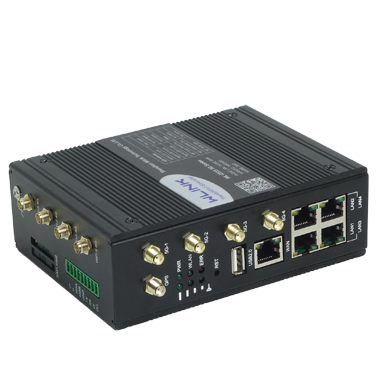

G535 Wi-Fi 6 5G Router

产品大图

WL-G535 operates in both 5G SA and NSA modes, full backward compatibility with 4G LTE and 3G networks. It achieves a theoretical peak throughput of 3.4Gbps, enabling real-time data transmission for latency-sensitive industrial operations.

gateway_sm gateway_sm gateway_sm gateway_sm
  • Overview
  • Specification
  • Order Model
  • Documentation

 Engineered for mission-critical industrial IoT applications, the WL-G535 delivers ultra-reliable 5G connectivity compliant with 3GPP Release 17 standards. It operates in both 5G SA and NSA modes with network slicing capabilities, while maintaining full backward compatibility with 4G LTE and 3G networks. Through advanced carrier aggregation technology, it achieves a theoretical peak throughput of 3.4Gbps, enabling real-time data transmission for latency-sensitive industrial operations.



 Powered by a quad-core 1.8GHz ARM Cortex-A53 processor and a dedicated hardware encryption engine, the router integrates 5x GbE Ethernet ports, 1x RS232, 1x RS485 serial ports, and programmable DI/DO digital controls. Its 802.11ax Wi-Fi 6 dual-band module supports concurrent speeds up to 1.8Gbps, while supported a deeply customized OpenWrt-based operating system optional, which embraces a variety of open-source components and multi runtime environments—empowering customers to tailor solutions for custom applications.



 Widely applicable across industries, the G535 is an ideal solution for factory automation, smart grids, intelligent transportation, environmental monitoring, security surveillance, public safety, advertising, and more.





 HIGHLIGHTS





Incredible Speed Cutting-Edge 5G Performance

5G SA/NSA dual-mode support for global compatibility.

Industrial-grade 5G module ensures stable connections in harsh environments.

Backward compatibility with LTE networks for widespread coverage.




Quad-Core Powerhouse

The fan-free design,

Qualcomm quad-core processor enables efficient multitasking and low latency.

Handles high-bandwidth applications like video streaming.




Versatile Connectivity

Wired Interfaces: 5 x Gigabit Ethernet, RS232, RS485, DI/DO for seamless integration with industrial devices.

Wireless: Dual-band Wi-Fi 6 (2.4G/5G) for high-speed, secure wireless access.




Flexible and Customizable OS

WLINK OS and OpenWRT OS optional. Support deeply customized OpenWrt system with open - source support. Supports multiple programming languages environment and tailored business logic development.





Blazing Fast Wi-Fi6

Wi-Fi6 revolutionizes wireless connectivity with blazing speed(1.8Gbps), massive device capacity, ultra - low lag and robust security.


Cloud-Based Platform Management

G535 can be managed via cloud management platform which provide easy setup, centralized configuration, network analysis and maintenance of large installations.




Secure and Reliable Network

G535 supports advanced security features to ensure robust and dependable communications. Key functionalities include DMVPN, OpenVPN, IPsec IKEv1/IKEv2, L2TPv3, NAT, port forwarding, stateful firewall, packet filtering, data encryption, and Access Control List (ACL). These features work together to provide a secure network environment, safeguarding data and maintaining reliable connectivity.

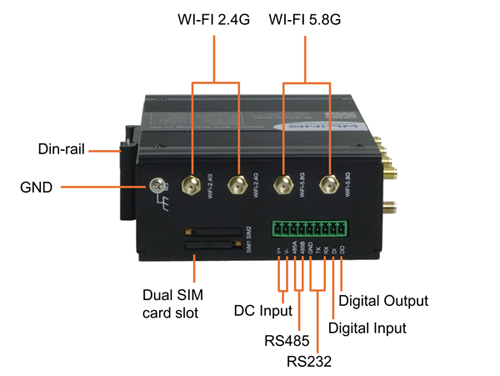

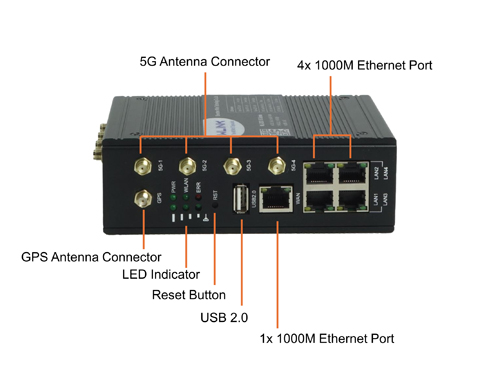

INTERFACE DIAGRAM



CLASSIFICATION APPLICATION


eMBB (enhanced Mobile Broadband)

URLLC (Ultra Reliable Low Latency Communications)Massive IoT

Key network considerations Per-connection

peakspeed,network capacity Includes streaming and high definition video, 360 degree video, public transit, and other data-intensive and image-intensive use cases

Key network considerations Reliability, latency

such as VR and AR, remote control of critical infrastructure,

vehicles, Industrial automation and utilities

Key network considerations scalability to very

large number of connections includes Smart City, Connected Vehicles, Smart Home, Smart Media, Smart Factories, Healthcare, Smart Metering, Smart Grid, Oil and gas
