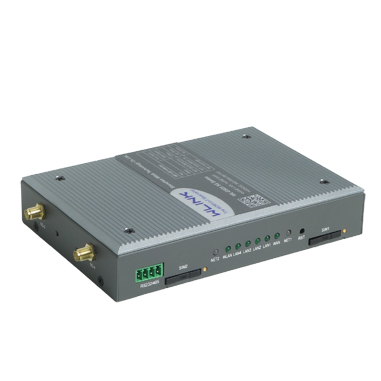

G525 Multi-port 5G Router
The WLINK G525 is a next-generation multi-port 5G router that builds upon the stable, reliable heritage of the R520 and G520. It is equipped with five Gigabit Ethernet ports and one serial port for versatile connectivity.
- Overview
- Specification
- Order Model
- Documentation
The WLINK G525 is a next-generation multi-port 5G router that builds upon the stable, reliable heritage of the R520 and G520. Harnessing the power of 3GPP Release 17 5G and Wi-Fi 6 (802.11ax) technologies, the G525 delivers groundbreaking speeds—up to 3.4 Gbps on 5G and 3 Gbps on Wi-Fi. This ensures real-time data transmission for the most latency-sensitive industrial automation, monitoring, and control systems.
At its core, a robust dual-core 1GHz ARM Cortex-A53 processor and a dedicated hardware watchdog guarantee stable and uninterrupted operation. The router is equipped with 5x Gigabit Ethernet Ports and 1x Serial Port. It further offers unparalleled flexibility with a deeply customized, OpenWrt-based operating system (optional), supporting a wide range of open-source components and multi-runtime environments for complete solution tailoring.
The built-in GNSS receiver simplifies design integration while providing faster, more accurate, and highly dependable positioning capabilities for applications requiring location intelligence.
As a true industrial-grade solution, the G525 is the ideal choice for a wide spectrum of applications, including Factory Automation & Smart Manufacturing, Intelligent Transportation Systems, Smart Grids & Environmental Monitoring, Security Surveillance & Public Safety, Digital Signage & Retail Advertising.
HIGHLIGHTS
| Incredible Speed Cutting-Edge 5G Performance 5G SA/NSA dual-mode support for global compatibility. Industrial-grade 5G module ensures stable connections in harsh environments. Backward compatibility with LTE networks for widespread coverage. |
| Dual-Core Powerhouse The fan-free design, Qualcomm dual-core A53 processor enables efficient multitasking and low latency. Handles high-bandwidth applications like video streaming. |
| Versatile Connectivity Wired Interfaces: 5 x Gigabit Ethernet, RS232/RS485 for seamless integration with industrial devices. IP-based PLC communication, with support for IPv6 and plug-and-place terminals. GNSS tracking and Storage are optional. |
| Flexible and Customizable OS WLINK OS and OpenWRT OS optional. Support deeply customized OpenWrt system with open - source support. Supports multiple programming languages environment and tailored business logic development. |
| Blazing Fast Wi-Fi6 Wi-Fi6 revolutionizes wireless connectivity with blazing speed(1.8Gbps), massive device capacity, ultra - low lag and robust security. |
| Cloud-Based Platform Management G525 can be managed via cloud management platform which provide easy setup, centralized configuration, network analysis and maintenance of large installations. |
| Secure and Reliable Network G525 supports advanced security features to ensure robust and dependable communications. Key functionalities include DMVPN, OpenVPN, IPsec IKEv1/IKEv2, L2TPv3, NAT, port forwarding, stateful firewall, packet filtering, data encryption, and Access Control List (ACL). These features work together to provide a secure network environment, safeguarding data and maintaining reliable connectivity. |

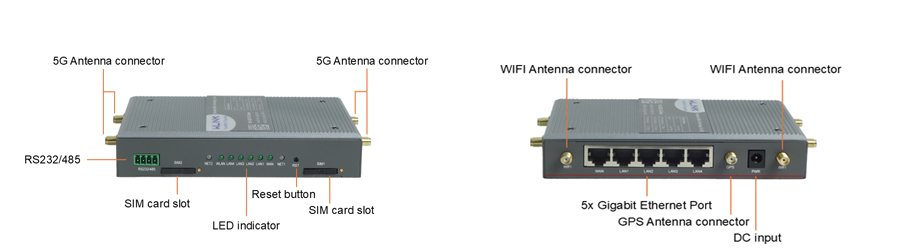

INTERFACE DIAGRAM

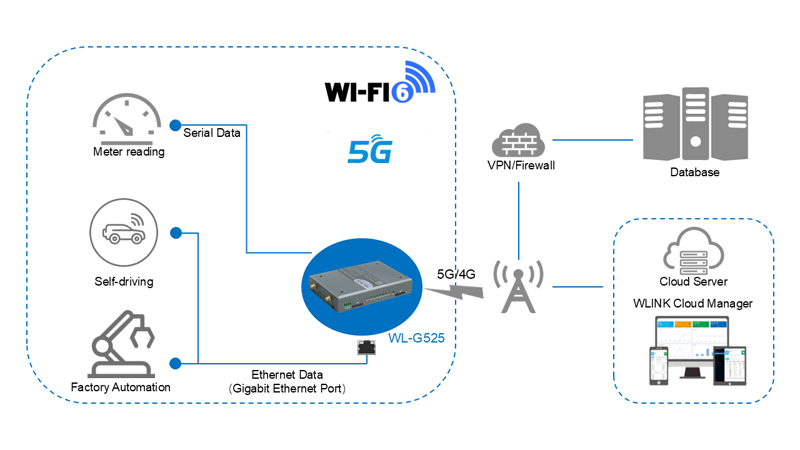

CLASSIFICATION APPLICATION
eMBB (enhanced Mobile Broadband) | URLLC (Ultra Reliable Low Latency Communications) | Massive IoT |
Key network considerations Per-connection peakspeed,network capacity Includes streaming and high definition video, 360 degree video, public transit, and other data-intensive and image-intensive use cases | Key network considerations Reliability, latency such as VR and AR, remote control of critical infrastructure, vehicles, Industrial automation and utilities | Key network considerations scalability to very large number of connections includes Smart City, Connected Vehicles, Smart Home, Smart Media, Smart Factories, Healthcare, Smart Metering, Smart Grid, Oil and gas |
