Ultra Performance

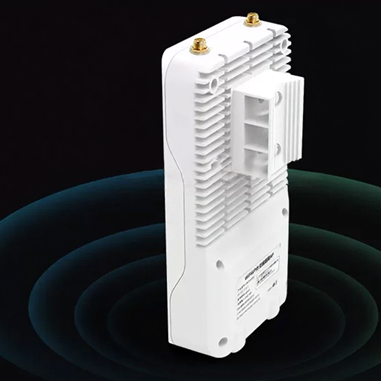

	The WL-AP600 is a high-performance outdoor dual-band wireless access point designed on the 802.11ax (Wi-Fi 6) standard.
Operating simultaneously across both 2.4 GHz and 5 GHz ISM bands, it delivers a combined wireless speed of up to 3047.5 Mbps (up to 573.5 Mbps on 2.4 GHz and 2474 Mbps on 5 GHz under 802.11ax mode), supporting up to 128 concurrent users.

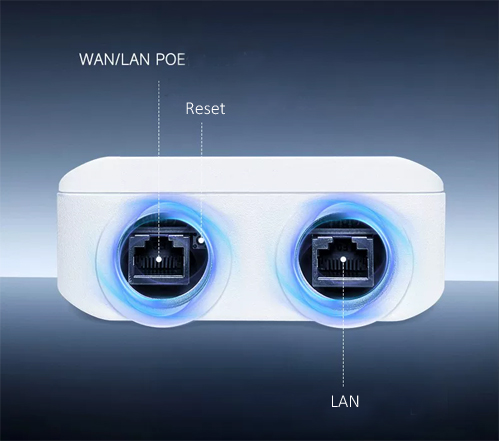

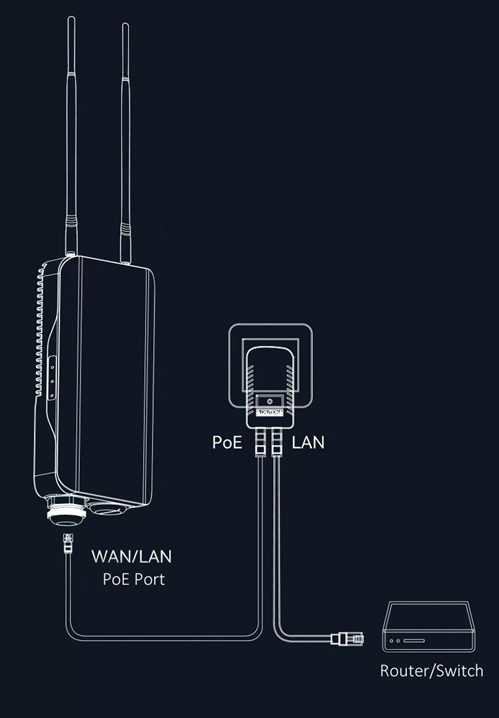

	Equipped with full Gigabit network ports and compliant with standard 802.3af/at PoE for remote power delivery, enabling simplified outdoor deployment.
The WL-AP600 features high gain, high receiver sensitivity, massive bandwidth, ultra-low latency, and high-density access capabilities to maximize coverage and guarantee link stability.
	Enclosed in IP65 weatherproof housing, it effortlessly resists wind, rain, dust, and sun exposure in harsh outdoor environments. External RP-SMA antenna connectors allow deployment with either omnidirectional or directional antennas, making it an ideal reliable choice for outdoor plazas, tourist attractions, industrial parks, and school campuses

Features

•  Designed based on industrial-grade hardware standards, the device features outstanding anti-electromagnetic interference capability to ensure stable operation without disruption in complex environments. Equipped with a high-level overvoltage and overcurrent protection system, it can easily withstand extreme scenarios such as lightning strikes and power fluctuations, providing robust protection with common mode 6KV and differential mode 1.5KV. Integrated with a professional-grade surge protection system, it fully resists sudden current damage. Through dual optimization of enhanced heat sinks and air duct structure, heat dissipation efficiency is significantly improved, ensuring long-term stable operation even in hot summers and eliminating the risk of downtime due to overheating.

• High-Speed Wi-Fi 6 Connectivity: Supports the 802.11ax protocol to deliver concurrent wireless speeds up to 3047.5 Mbps (2.4 GHz at 573.5 Mbps + 5 GHz at 2474 Mbps).

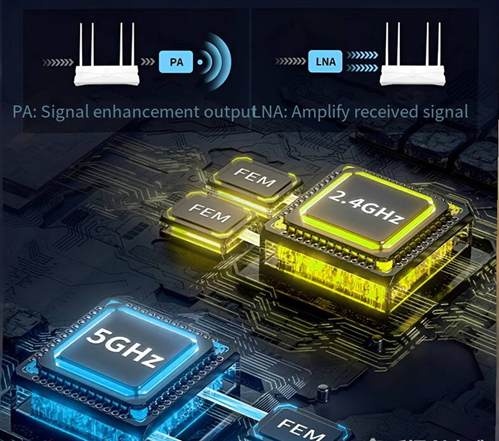

• High-Performance RF Front-End: Equipped with dedicated external Wi-Fi 6 RF chips to guarantee wider signal coverage, higher throughput, and longer transmission range.

• Wire-Speed Hardware Forwarding: Supports HNAT (Hardware Network Address Translation) for fast forwarding, delivering bidirectional wired throughput of up to 2 Gbps.

• Advanced Wireless Tech: Leverages MU-MIMO, OFDMA, and BSS Coloring to significantly improve network capacity, expand coverage, and reduce latency in high-density environments.

• Flexible Fat/Fit Deployment Architecture: Features a unified Fat/Fit software image. It can operate as a standalone AP in small setups or be managed in bulk by an AC gateway in medium-to-large enterprise networks.

• Continuous Updates: Ongoing firmware updates and performance optimizations to adapt to evolving network environments and user expectations.

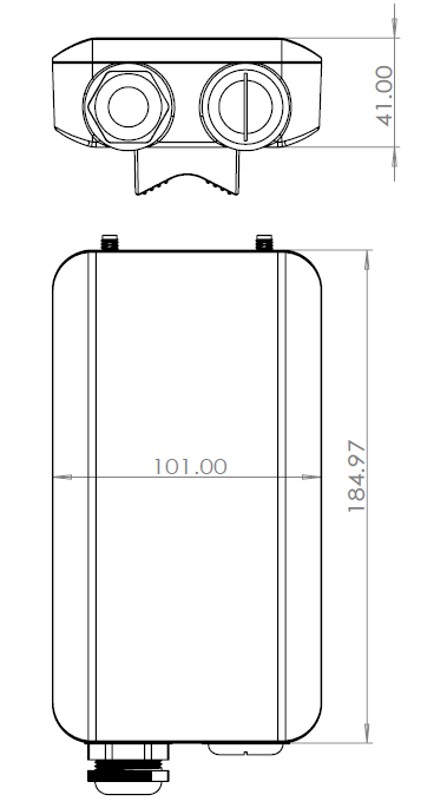

Dimension

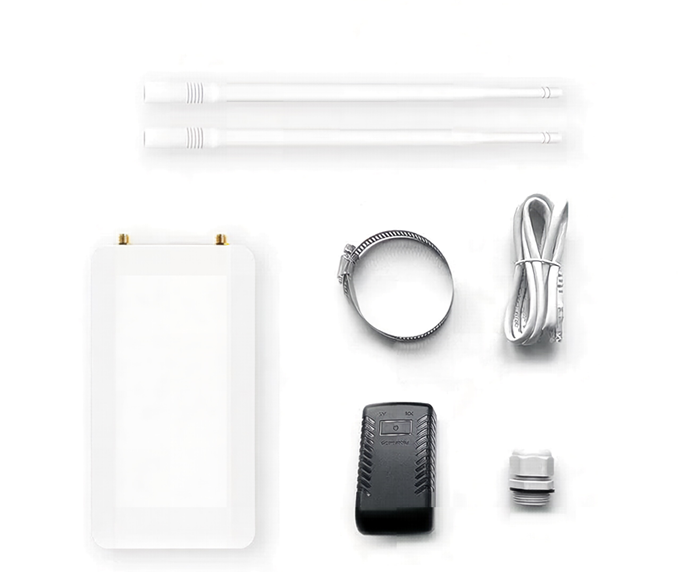

Package Kits
