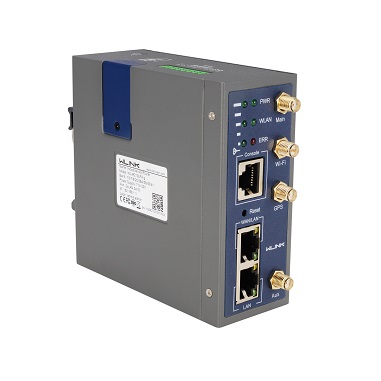

R210 4G/3G Router with I/O

产品大图

WLINK R210 Series is the Intelligent 4G / 3G router designed for critical infrastructure, M2M, Iot and industrial applications.

gateway_sm gateway_sm gateway_sm gateway_sm gateway_sm
  • Overview
  • Specification
  • Order Model
  • Documentation

WLINK R210 series Router is the IoT/M2M mobile broadband router working on the 4G or 3G cellular network to provide reliable, secure and high speed wireless connectivity with I/O and VPN supported. It is powerful and programmable industrial mobile router with high performance and harden casing design for remote management, telemetry, condition monitoring, CCTV, ATMs, vending machine and other M2M applications.

WL-R210 4G router is an ideal wireless data transfer device for applications transferring large data load because of its fast transferring speed in 4G network reaching up to 150M download and up to 50M upload. VPN features also can be configured in WLINK router, allowing you to utilize virtual private network service through a 4G/3G wireless router and built for stresses and workload of a modern industrial or commercial environment.

With dual SIM function, R210 series router could backup network between the two SIM cards to ensure continuous connection. With optional GPS capability, enable the router ideal for fleet tracing or access management. The R210 router is well suited for M2M connectivity in harsh or remote environment because of its rugged metal casing, I/0 port, DIN-Rail mounts and the wide operating temperature range from - 30 to 70 degree.

Basic Features

  • Industrial robust design and compact metal housing

  • High data speed via FDD /TDD  4G or DC-HSPA+/HSPA+/WCDMA/UMTS  3G network, 2.5G backward compatible

  • Strong electromagnetic interference Resistance

  • Heat endurance and radiation ability

  • Built-in watch dog, Multi-link detection

  • 802.11b/g/n Wi-Fi support, 150Mbps data rate

  • Ultra security, VPN: PPTP, L2TP, GRE, IPSec VPN, OpenVPN

  • ModBus TCP

  • 3 x GPIO I/O (Input/Output)

  • MIMO antenna for 4G

  • Support DIN-Rail Mount

  • WAN port support PPPoE, static IP, DHCP client.

  • Dual SIM for failover/ Backup between two different network

  • Always online, reboot automatically if disconnected to ensure continual connection

  • Support APN and VPDN wireless private network access in

  • LCP/ICMP/flow/heartbeat check, ensure network usability

  • Web/CLI/SSH/Management platform support, easy configure

  • SNMP network management, NTP support

  • Local & remote management (configuration, status, upgrade firmware)

  • Supports DHCP Server

  • Supports DNS proxy and Dynamic DNS (DDNS)

  • Supports timing operation

  • Supports LED status indication

  • Shock and vibration resistant

Advanced Features

  • Network Type includes FDD-LTE/TDD-LTE 4G, DC-HSPA+/HSPA+/UMTS/WCDMA 3G and EVDO 3G.

  • GPS capability for fleet management or other tracking application

  • DTU serial communication function

  • Captive Portal for WiFi hotspot

  • OpenVPN

  • PPTP Sever optional

  • Schedule reboot

  • Customized acceptable

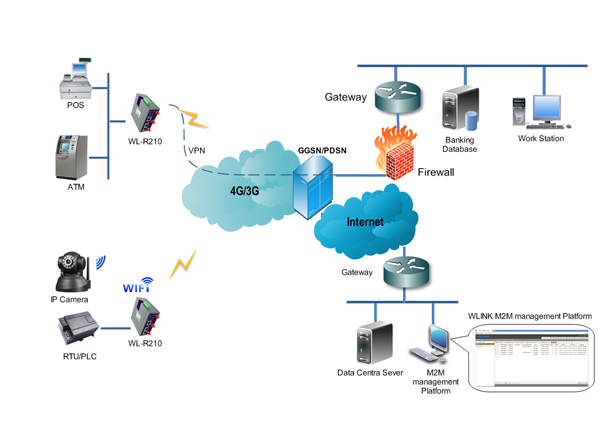

Typical Application

Energy


Digital Oil Field, Smart Mining, Solar, Smart Grid, Transformer Monitoring,  Connectivity for EV Charge Station, Wind Power


 Retail


ATM, POS(Point-of-Sale), Self-service Kiosk, Vending Machine, Lottery Machine, Branch network, Digital Signage, Video Surveillance, failover between WAN&4G/3G


 Industry


Remote Telemetry, Tanking Monitoring, Automation, Remote PLC, Remote AMR, Smart Irrigation, Urban Heat supply system, Geological Disaster Monitoring System, Smart Ware house, Smart Factory


 Smart City


Traffic, Street lighting, Public Safety &Security, 5G/4G Public hotspot, Environment monitoring, Video Surveillance, Smart Package Locker, Utilities, Wastewater Treatment, Smart Trash Can, Remote control of Golf Irrigation System, Smart Building


 Healthcare


Mobile Medical Equipment Remote Monitoring, Telemedicine


 Transportation


Bus WiFi, WiFi on Board, Vehicle video surveillance, Fleet tracking and management, Bus Advertising, Cold Chain Logistic, Highway Monitoring

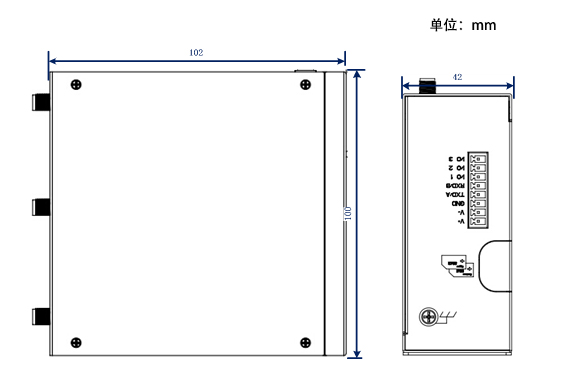

Product Structure
