HOME > PRODUCTS > 5G router > G955 Cutting-Edge 5G Router

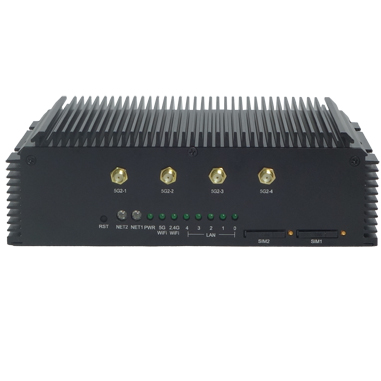

G955 Cutting-Edge 5G Router

G955 Cutting-Edge 5G Router

The WL-G955 is a mission-critical 5G industrial IoT router featuring SA/NSA modes, and dual 5G modems/SIMs for 3.4Gbps peak speeds. Powered by a 1.3GHz ARM Cortex-A53 processor, it offers 5x GbE, serial ports, DI/DO, and a 3Gbps Wi-Fi 6 module. It suppor

gateway_sm gateway_sm gateway_sm gateway_sm gateway_sm
  • Overview
  • Specification
  • Order Model
  • Documentation


 Engineered for mission-critical industrial IoT applications, the WL-G955 delivers ultra-reliable 5G connectivity compliant with 3GPP Release 17 standards. It operates in both 5G SA and NSA modes with network slicing capabilities, while maintaining full backward compatibility with 4G LTE and 3G networks. G955 features dual 5G modems and dual SIM cards, with dual-5G backup, load balancing, and link bonding/aggregation. These capabilities ensure uninterrupted connectivity and optimized bandwidth utilization. Advanced carrier aggregation enables a theoretical peak throughput of 3.4 Gbps, supporting real-time data transmission for latency-sensitive industrial operations.

  Engineered for mission-critical industrial IoT applications, the WL-G955 delivers ultra-reliable 5G connectivity compliant with 3GPP Release 17 standards. It operates in both 5G SA and NSA modes with network slicing capabilities, while maintaining full backward compatibility with 4G LTE and 3G networks. G955 features dual 5G modems and dual SIM cards, with dual-5G backup, load balancing, and link bonding/aggregation. These capabilities ensure uninterrupted connectivity and optimized bandwidth utilization. Advanced carrier aggregation enables a theoretical peak throughput of 3.4 Gbps, supporting real-time data transmission for latency-sensitive industrial operations.Powered by a dual-core 1.3GHz ARM Cortex-A53 processor and a dedicated hardware encryption engine, the router integrates 5x GbE Ethernet ports, 1xUSB, 1x RS232, 1x RS485 serial ports, and programmable DI/DO digital controls. Its 802.11AX 3000 module supports concurrent speeds up to 3Gbps, while supporting a deeply customized OpenWrt-based operating system(optional), which embraces a variety of open-source components and multi-runtime environments—empowering customers to tailor solutions for custom applications.

 With broad industry applicability, the WL-G955 is ideal for factory automation, smart grids, intelligent transportation, environmental monitoring, security surveillance, public safety, advertising, and 4K live streaming.





 HIGHLIGHTS




5G High Speed


Incredible Speed Cutting-Edge 5G Performance

5G SA/NSA dual-mode support for global compatibility.

Industrial-grade 5G module ensures stable connections in harsh environments.

Backward compatibility with LTE networks for widespread coverage.



Quad Core CPU


Quad-Core Powerhouse

The fan-free design,

Qualcomm quad-core processor enables efficient multitasking and low latency.

Handles high-bandwidth applications like video streaming.



5G Router with versatile connectivity


Versatile Connectivity

Multiple interfaces including Gigabit Ethernet,USB, RS-232,RS-485,and DI/DO.IP-based PLC  communication,with support for IPv6,and plug- and-play terminals. GNSS tracking and Storage are optional.



5G Router OS


Flexible and Customizable OS

WLINK OS and OpenWRT OS optional. Support deeply customized OpenWrt system with open - source support. Supports multiple programming languages environment and tailored business logic development.




5G router with WiFI 6


Blazing Fast Wi-Fi6

Wi-Fi6 revolutionizes wireless connectivity with blazing speed(3Gbps), massive device capacity, ultra - low latency and robust security.


Router Platform Management

Cloud-Based Platform Management

G955 can be managed via cloud management platform which provides easy setup, centralized configuration, network analysis and maintenance of large installations.



5G Router with Secure Network


Secure and Reliable Network

G955 supports advanced security features to ensure robust and dependable communications. Key functionalities include DMVPN, OpenVPN, IPsec IKEv1/IKEv2, L2TPv3, NAT, port forwarding, stateful firewall, packet filtering, data encryption, and Access Control List (ACL). These features work together to provide a secure network environment, safeguarding data and maintaining reliable connectivity.

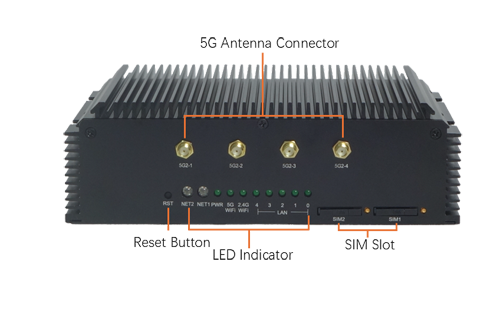

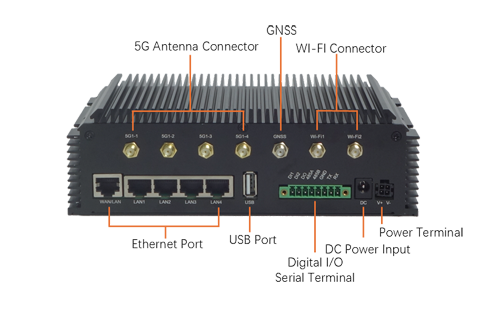

INTERFACE DIAGRAM

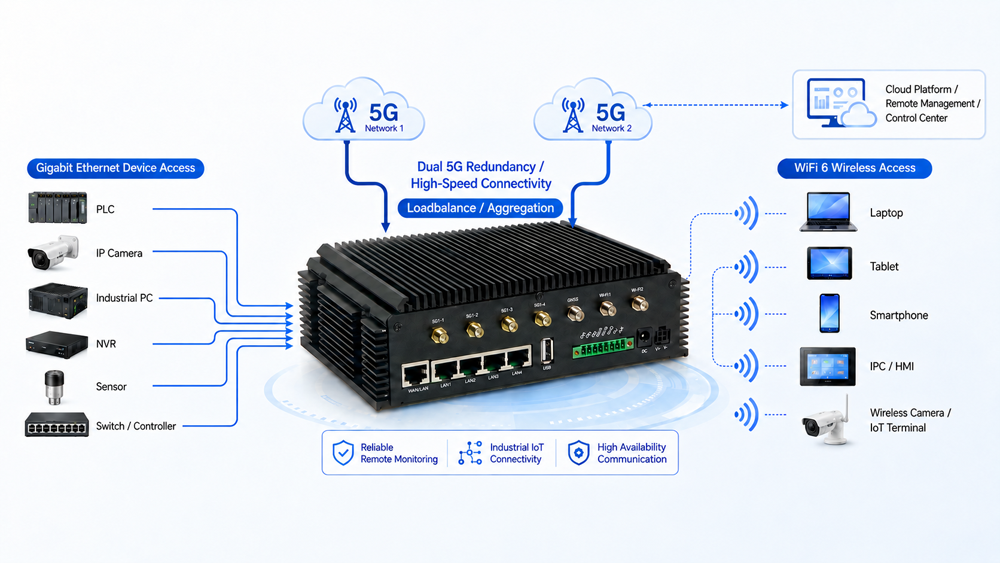

CLASSIFICATION APPLICATION


eMBB (enhanced Mobile Broadband)

URLLC (Ultra-Reliable Low-Latency Communications)Massive IoT

Key network considerations Per-connection

peakspeed,network capacity Includes streaming and high definition video, 360 degree video, public transit, and other data-intensive and image-intensive use cases

Key network considerations Reliability, latency

such as VR and AR, remote control of critical infrastructure,

vehicles, Industrial automation and utilities

Key network considerations scalability to a very

large number of connections includes Smart City, Connected Vehicles, Smart Home, Smart Media, Smart Factories, Healthcare, Smart Metering, Smart Grid, Oil and gas
