Gas-tube Surge

产品大图

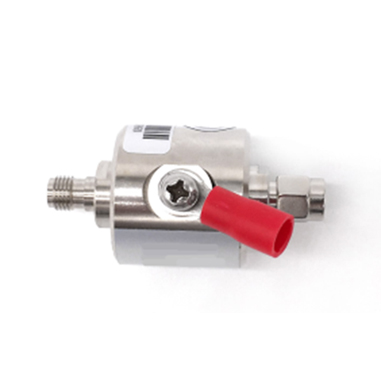

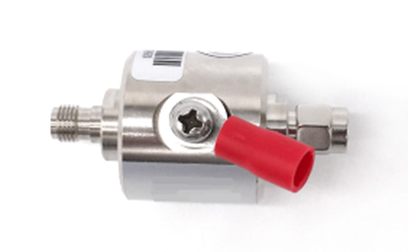

Gas tube Surge for WLink router

gateway_sm
  • Overview
  • Specification
  • Order Model
  • Documentation

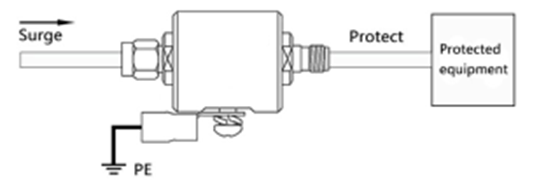

Schematic   Diagram

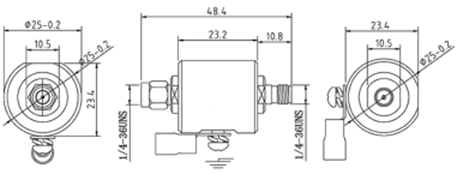

Product   Size

APPLICATIONS:

Designed for antenna coaxial   device and receive/transmit system not to be spoiled by lightning   over-voltage, induced over-voltage and static discharge.

  • IEEE 802.11b and 802.11g wireless LAN

  • ISM

  • MMDS

  • Cellular

  • PCS

  • GPS

FEATURES:

  • Gas-tube Structure

  • Easily Replaced Gas Tube Element

  • Reliable Performance from DC to 3GHz

  • Multi-Strike Capability

  • Bi-Directional Protection

  • DC passed

  • RoHS Compliant

TECHNICAL PARAMETER：


Model

WL-A25S70F

Electrical Parameter

Working frequency

0-3.0GHz

Max. continuous operating voltage Uc

70V

DC breakdown voltage

90V

Max. discharge current  Imax

10kA

Limiting voltage(8/20µs)

700V

Insertion loss

0.5dB

VSWR

1.5

Interface form

SMA-   F/M

Mechanical characteristics

Dimension

49(L)×26(W)×28.5(H)mm

Weight per unit

99.5g

IP Code

IP20

Working conditions

Temperature:   -40 to 80℃,

Relative   humidity: ≤95％

Standards compliance

IEC1000-4-5, RoHS
