Solution Profile

Thanks to 5G/4G IoT wireless communication technology, automatic weather stations are now capable of real-time data transmission. By utilizing WLINK 5G/4G router and IoT gateways, collected meteorological data can be swiftly transmitted to cloud servers or monitoring centers. This real-time transmission mechanism overcomes the delays and geographical constraints typical of traditional meteorological monitoring, allowing meteorological departments, businesses, and the public to access the latest weather information in a timely manner. Whether for urban meteorological warning systems, smart irrigation in agricultural bases, or dispatch and command centers in aviation and maritime transport, accurate weather data is now instantly available, providing a reliable and timely basis for decision-making.

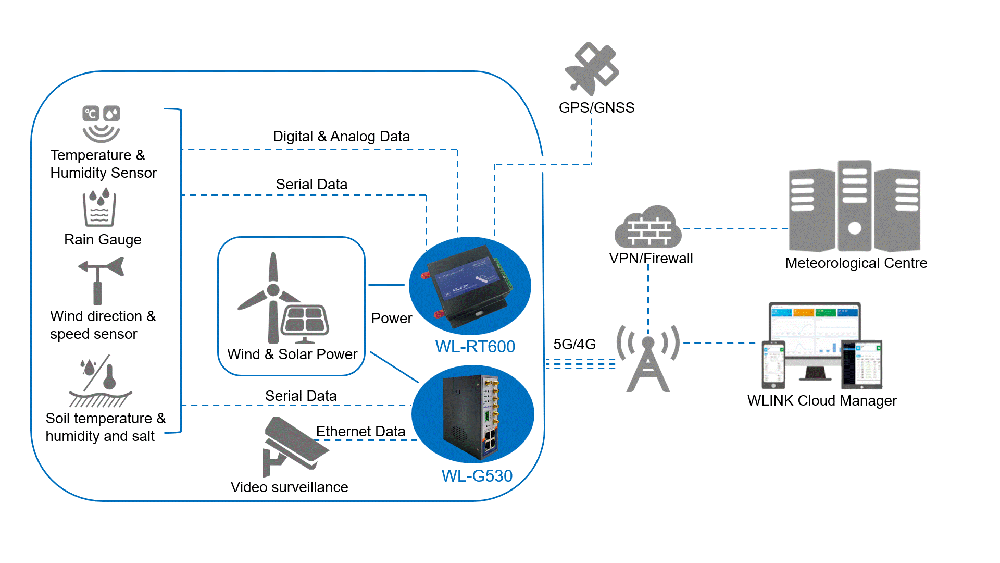

Application Topology

System Architecture

l Sensor Suite

Industrial-grade sensors for measuring parameters including:

Temperature, Humidity, Atmospheric Pressure

Wind Speed, Wind Direction

Precipitation (Rain Gauge)

Solar Radiation

l Data Acquisition & Control Unit

A low-power, high-performance microcontroller for data collection, processing, and local storage.

Features watchdog timer and self-recovery functions for enhanced reliability.

l Communication Module

Integrated 5G/4G gateway and RTU, supporting SA/NSA modes and multi-band operation.

Ensures high-speed, low-latency, and secure data transmission to the cloud platform.

Optional dual-SIM backup for critical applications.

l Power System

Flexible configuration such as Main power, Solar Panel with deep-cycle battery, or hybrid wind-solar systems.

Intelligent power management extends operation for 7-15 days without primary power input.

Core Features

l Automated Data Logging

Configurable sampling intervals. Data is stored locally with encryption and supports

l Remote Telemetry

 Scheduled or real-time data upload via 5G/4G networks.

l Remote Management & OTA

Firmware Over-The-Air (FOTA) updates, remote configuration, diagnostics, and control.

l Smart Alerting

Multi-level alarms (SMS/Platform) for data thresholds, equipment faults, and low battery.

l Data Platform

Cloud-based visualization, historical trend analysis, reporting, and API access for integration.

Key Advantages

l True Unattended Operation

Minimizes operational expenditure and site visits.

l Extensive Coverage

Utilizes ubiquitous 5G/4G public networks for flexible and rapid deployment.

l High Reliability & Redundancy

Industrial-grade components and backup systems ensure continuous service.

l Enhanced Security

End-to-end data encryption and secure access protocols.

l Scalability & Modularity

Modular design allows for easy sensor integration and future expansion.

Related Products

WL-G230 series 5G/4G Router

WL-RT600 series 4G/3G RTU Gateway

WL-RT620 series 4G/3G RTU Gateway
