System Introduction

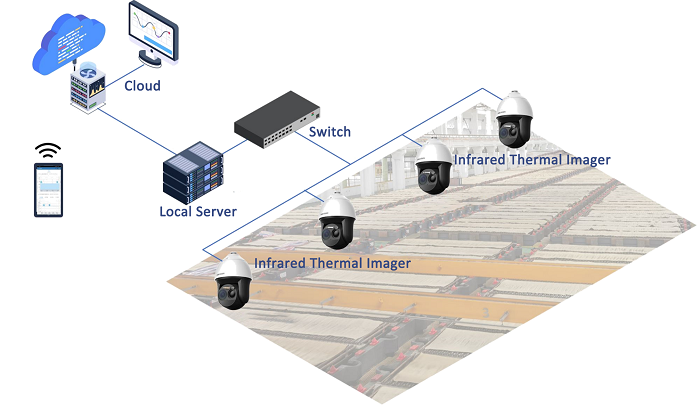

The electrolytic tank infrared online monitoring system utilizes infrared temperature measurement technology, IoT technology, cloud computing, and big data combined with professional monitoring equipment to create a hardware and software system.

It addresses the hidden dangers of short circuits in copper electrolytic tanks by providing real-time online monitoring, early warning and forecasting, information management, and data mining. This improves smelting efficiency, reduces labor costs, and minimizes the risks associated with detecting short circuits.




 Infrared Temperature Measurement Camera

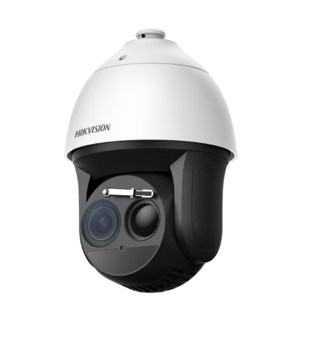

The dual-spectrum temperature measurement thermal imager is equipped with a sensitive infrared thermal imager and a high-definition camera. Its high-precision photoelectric turntable can preset scanning paths to conduct wide-range scanning searches on the short-circuited plates of the electrolytic tank surface. It is suspended in the electrolytic workshop below the lighting beams and coated with an anti-corrosion layer to resist corrosion and acid rain.


Key Features:

•Supports temperature measurement with a range of -20℃ to 550℃  (±2℃) •Highest temperature cross-positioning •Supports 1-line temperature measurement, 10-frame temperature measurement, and 10-point temperature measurement
•274 x preset positions •Precision motor drive, responsive and stable operation, accuracy deviation less than 0.1 degree, no image shake at any speed
•Supports 3D positioning, enabling click-to-zoom with client software/IE •Supports system dual backup function to ensure data safey during power outages


Backend Recognition and Reporting

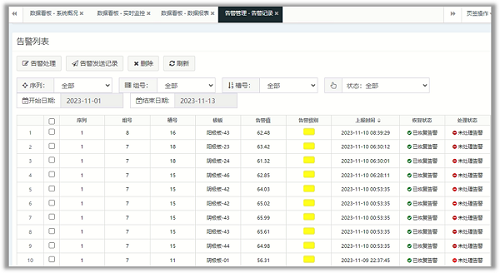

The management platform’s backend configures the temperature measurement range, sets alarm thresholds, receives and records temperature, and sends alarms when the data reaches the threshold as preset.


Frontend Recognition and Display

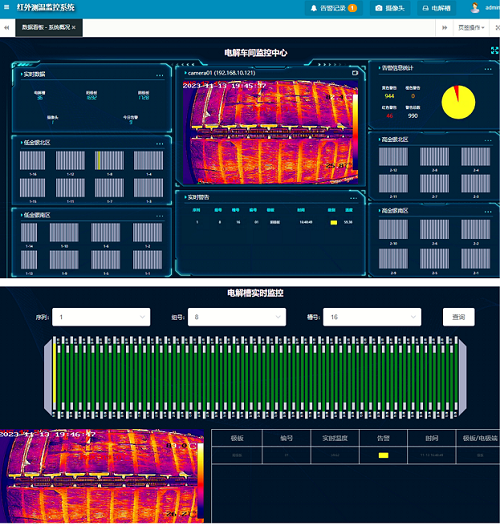

Real-time monitoring images and data on the dashboard, can also filter a specified slot number.

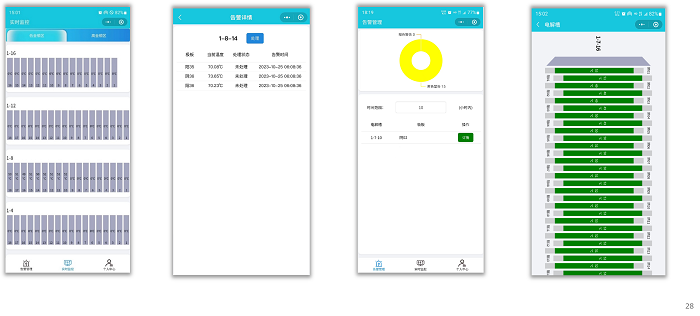

Electrolytic Tank Monitoring Mini Program
