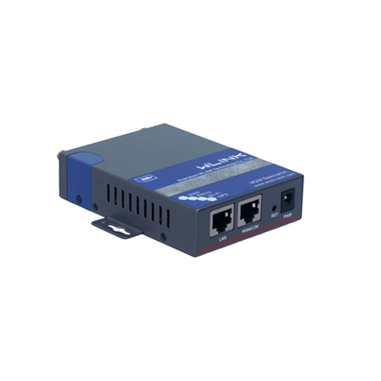

R200 4G/3G Router 2xLAN

产品大图

Wlink R200 is the industrial grade, secure and reliable 4G/3G router, it designs for professional application such as ATM, Video surveillance.

module
gateway_sm gateway_sm gateway_sm gateway_sm gateway_sm
  • Overview
  • Specification
  • Order Model
  • Documentation

WLINK WL-R200 series Router is the internet of thing mobile broadband router and a machine to machine (M2M) industrial cellular router, which can optional works on the 4G or 3G cellular network to provide reliable, secure and high speed wireless connectivity with VPN security supported. It is powerful and programmable industrial mobile router with high performance and harden casing design for remote management, telemetry, condition monitoring, CCTV, ATMs, vending machine and other M2M applications.

WL-R200 4G router is an ideal wireless data transfer device for applications transferring large data load because of ultimately fast transfer speed in 4G network reaching up to 100M download and up to 50M upload. VPN features also can be configured in WLINK router, allowing you to utilize virtual private network service through a4G/3G wireless router and built for stresses and workload of a modern industrial or commercial environment. Its compact small size design, enable WL-R200 Router easy to be embedded into other equipment or system.

With optional GPS capability, enable the router ideal for fleet tracking or access management.

The WL-R200 with Ethernet capability, also come with a serial RS232 port for communication via serial port.

Basic Features

  • Industrial robust design and compact metal housing

  • High data speed via 4G or 3G network, 2.5G backward compatible

  • Strong electromagnetic interference Resistance

  • Heat endurance and radiation ability

  • Built-in watch dog, Multi-link detection

  • Ultra security, VPN: PPTN, L2TP, GPE, IPSec VPN

  • High Reliability: Hardware link self-recovery

  • WAN port support PPPoE, static IP, DHCP client.

  • Failover/ Backup between WAN and Cellular network

  • Always online, reboot automatically if disconnected to ensure continual connection

  • Support APN and VPDN wireless private network access in

  • LCP/ICMP/flow/heartbeat check, ensure network usability

  • Web/CLI/SSH/Management platform support, easy configure

  • SNMP network management, NTP support

  • Local & remote management (configuration, status, upgrade firmware)

  • Supports DHCP Server

  • Supports DNS proxy and Dynamic DNS (DDNS)

  • Supports timing operation

  • Supports LED status indication

  • Shock and vibration resistant

  • CE, ROHS, EMC

Optional Features

  • Optional Network Type includes FDD-LTE/TDD-LTE 4G, UMTS/WCDMA 3G and EVDO 3G.

  • 802.11b/g/n Wi-Fi optional, 150Mbps data rate

  • GPS capability optional for fleet management or other tracking application

  • DTU serial communication function optional

  • OpenVPN Optional

  • PPTP Sever optional

  • Schedule reboot optional

  • Customized acceptable

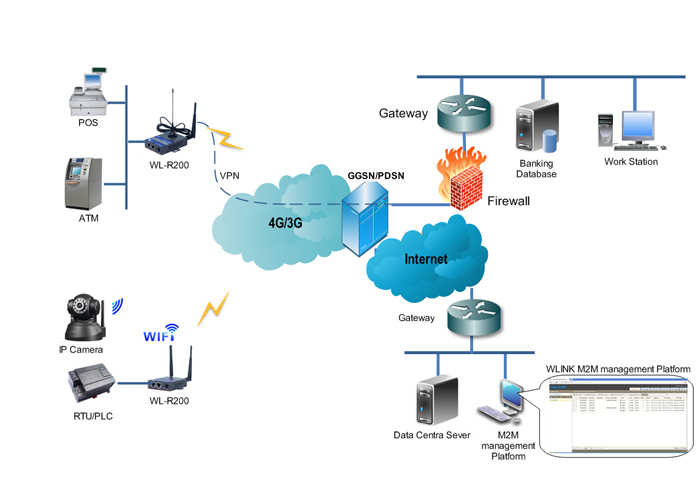

Typical Application

Enegry


Digital Oil Field, Coal Mine, Solar, Smart Grid


Utilities


Remote Telemetry, Tanking Monitoring, Automation, Remote PLC, Remote AMR,

Remote Monitoring and control


Industry


Remote Telemetry, Tanking Monitoring, Automa


Retail


ATM, POS(Point-of-Sale), Vending Machine, Lottery Machine, Branch network, Digital

Signage, Video Surveillance, failover between WAN&4G/3G


Transportation


Bus WiFi, WiFi on Board, Vehicle video surveillance, Fleet tracking and management,

Bus Advertising

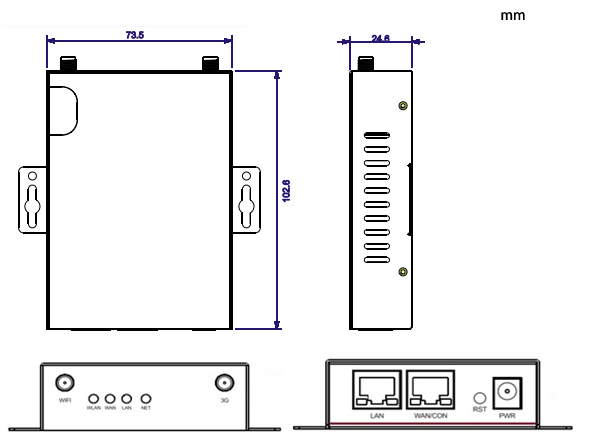

Product Structure
